Product Description

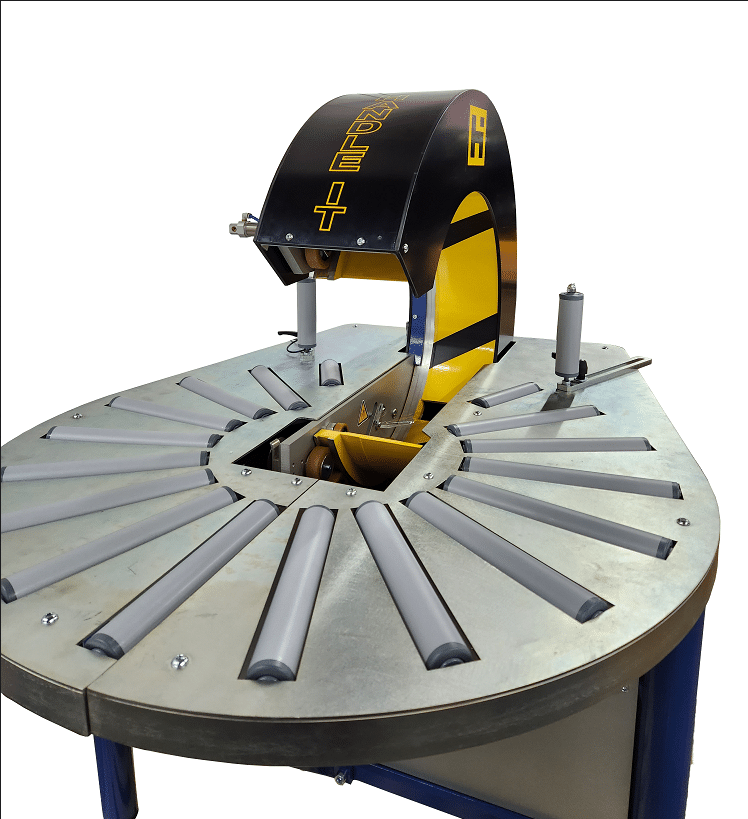

The Handle It OWM-SA-50C is a C-style orbital stretch wrap machine purpose-built for packaging products with a hollow center — hose rolls, wire rolls, wheels, rings, window frames, picture frames, industrial bearings, and tires. Where a standard orbital wrapper requires the product to pass through a closed ring, the C-style open-gap design lets the operator load products with open centers directly onto the roller table without threading.

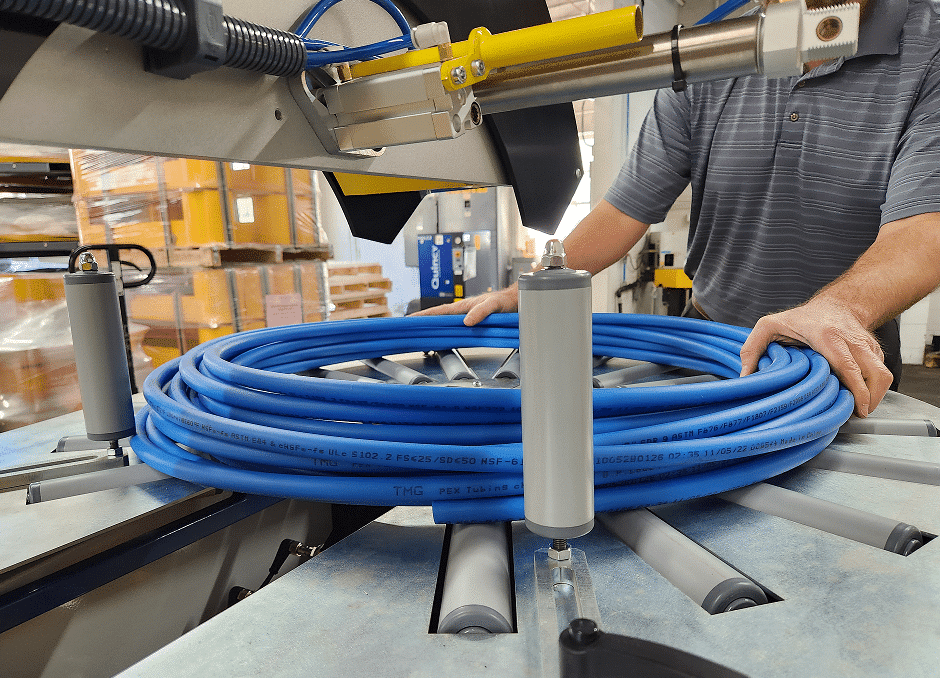

The operator places the product on the roller table with the opening aligned to the table gap, presses the foot switch, and the ring closes automatically. The product is manually rotated to distribute film, and at cycle end the ring opens automatically for product removal. The dual reel dispenser allows wrapping with one or two reels simultaneously for simple or reinforced packaging.

3-Year Warranty included.


Technical Specifications

Specification Value
Ring Opening 19" (50 cm) — C-Style gap design
Min. Inner Diameter 11.5"
Min/Max Outer Diameter 14.75" / 37.5"
Max Product Thickness 9"
Min/Max Product Weight 11 / 55 lbs
Ring Rotation Speed Up to 50 RPM
Power Supply 230V, 1-Phase
Engine 0.36 kW
Maneuver Voltage 24V DC
Power Consumption 0.34 kW
Pneumatic Pressure 58 psi (4 bars)
Air Consumption 1.58 gal/cycle
Speed Inverter Fuji
PLC Omron
Certifications CE — 2006/42/CE, 2014/30/UE, 2014/35/CE-BT




Film Specifications

Specification Value
Film Width 4"
Max Roll Diameter 4.5" OD
Film Thickness 90g
Film Color Transparent or Opaque

Standard Equipment

  • Steel frame — grey with blue accent, ring in safety yellow

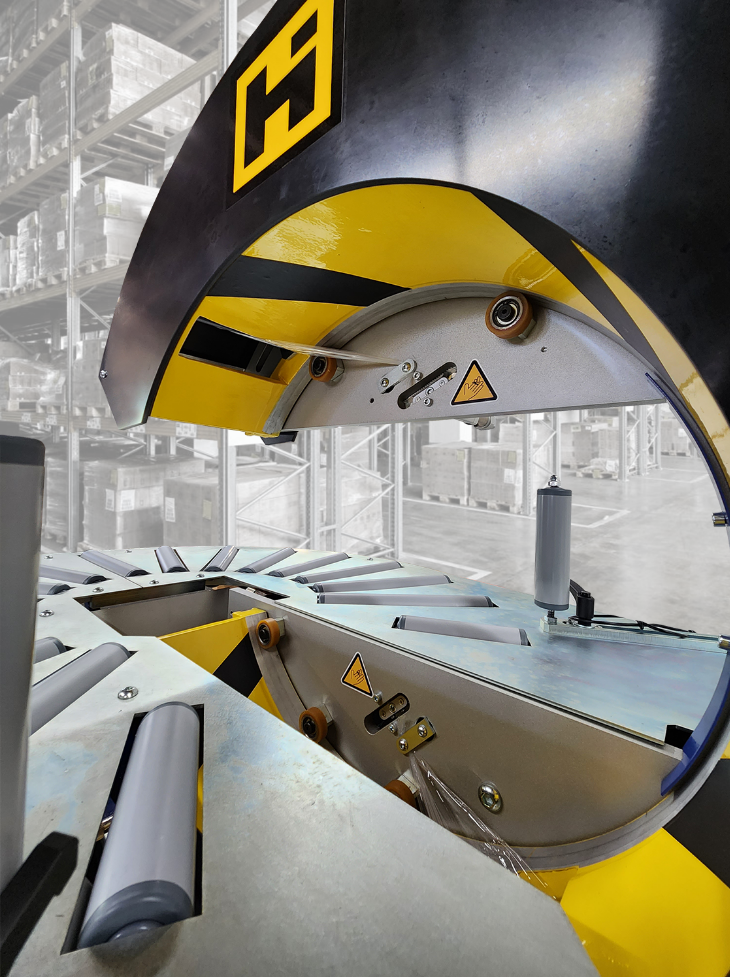

  • C-style gap design — open ring for loading hollow-center products

  • Dual reel dispenser — 1 or 2 reels simultaneously

  • Double automatic film clamp and cutter on both reels

  • Auto-positioning stop for reel changes

  • Tool-free reel changes with self-fixing system

  • Ring speed controller — adjusts wrap overlap

  • Gravity roller table for easy product rotation

  • Safety foot switch

  • Toothed belt ring drive — low maintenance

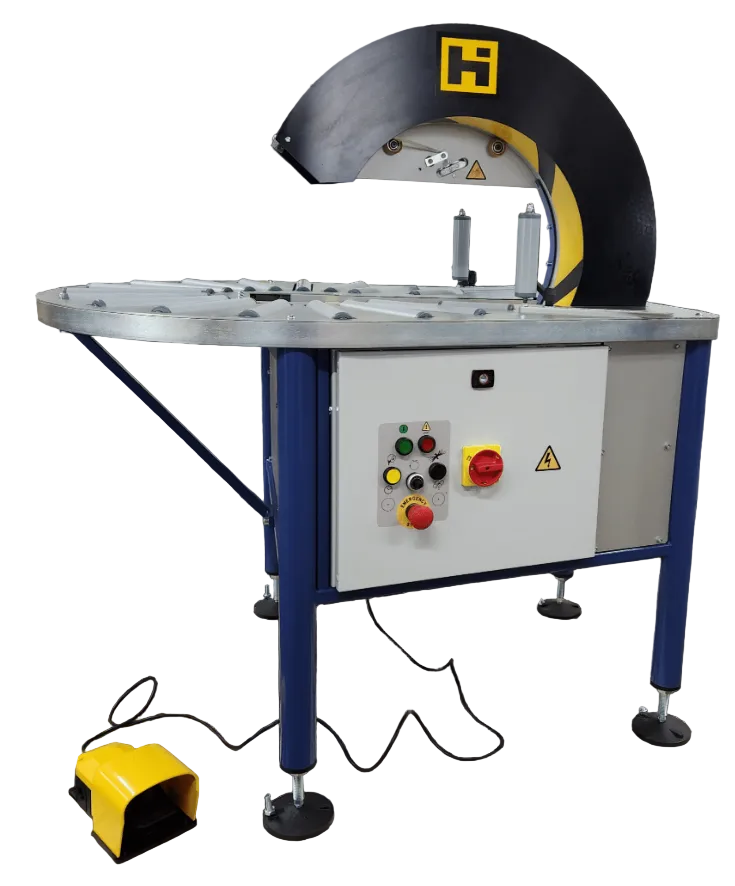

  • Control panel — master switch, power/warning light, reset, ring speed control, reel change, emergency stop


Options & Accessories

Option Description
Multidirectional Ball Table Gravity ball table for easier product feeding and rotation
Driven Roller Table Automatic product rotation for circular products
External Driven Roller Table Auto-rotation for circular products up to 70" (1,800 mm) diameter
Side Vertical Roller Manual-fit guide roller for product stability
Horizontal External Gravity Rollers For wrapping profiles through the C-gap
Caster Wheels with Brake Makes unit portable and repositionable

Applications

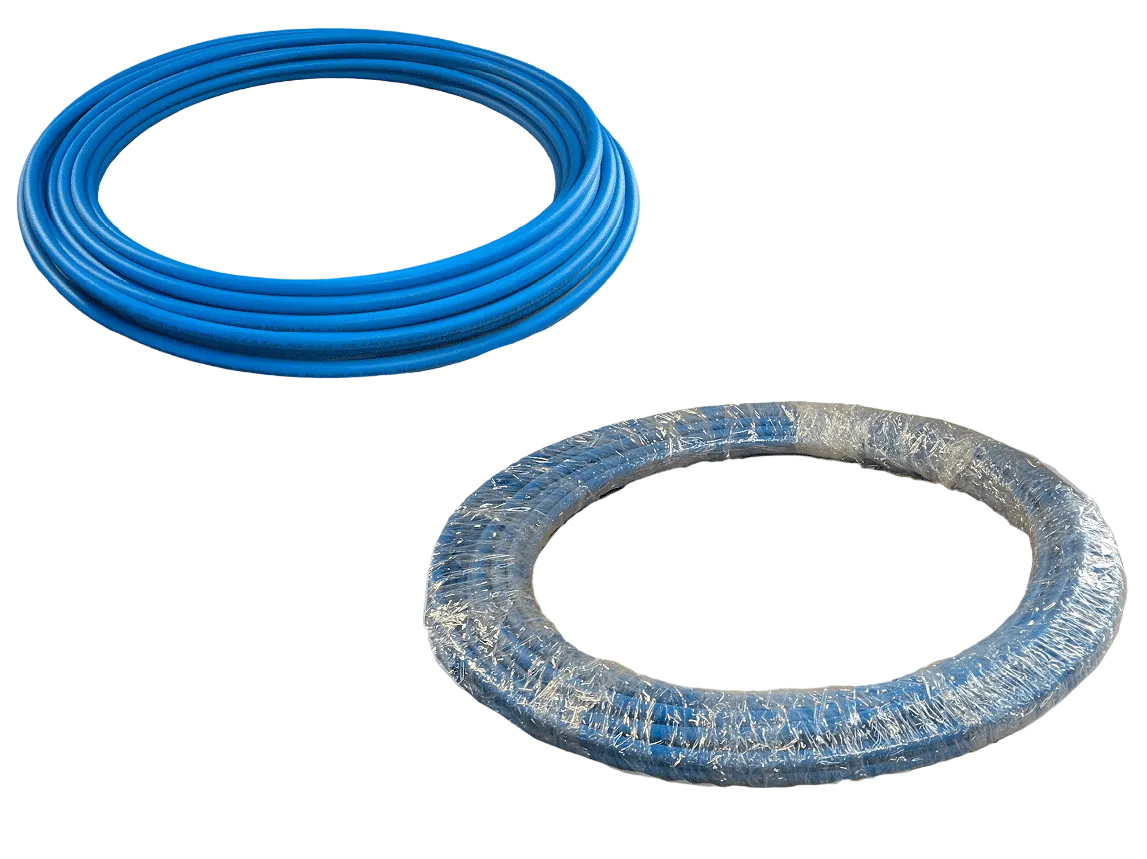

Hose rolls · Wire rolls · Wheels and tires · Rings · Window frames · Picture frames · Industrial bearings · Any open-center product
