Product Description

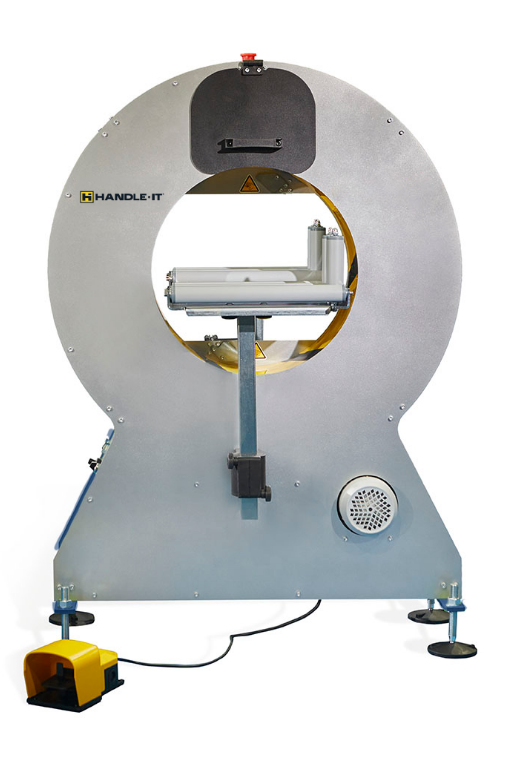

The Handle It OWM-SA-50 is a semi-automatic orbital (horizontal) stretch wrap machine designed to package, group, and protect long or irregularly shaped products with stretch film. It's the right solution for operations wrapping moldings, flooring, profiles, aluminum bars, tubes, blinds, and similar products where a standard turntable pallet wrapper simply won't work.

The operator manually feeds the product through the wrapping ring on the gravity in-feed roller conveyor, presses the foot pedal to engage the film reels, and removes the wrapped product from the out-feed conveyor. The dual reel dispenser wraps with one or two reels simultaneously — two reels for reinforced, faster packaging or one reel for a simple wrap.

The OWM-SA-50 includes a double automatic clamp and cutter system as standard — no manual film cutting, no tools required to change reels, and a safety interlock that disables the machine during reel changes.

3-Year Warranty included.


Technical Specifications

Specification Value
Ring Opening (W x H) 19" (50 cm)
Min. Product Length 10" (250 mm) standard / 6" (150 mm) with Short Products Bridge
Max. Product Length No limit
Min. Product Cross-Section 2" x 2" (50 x 50 mm)
Ring Rotation Speed 5–150 RPM
Power Supply 110V, 1-Phase
Engine 0.4 kW
Maneuver Voltage 24V
Electrical Consumption 0.26 kW
Pneumatic Pressure 90 psi (cutting system configuration)
Air Consumption 0.75 gal/cycle (cutting system configuration)
Speed Inverter Omron
PLC Omron
Frame Color Grey with blue accent
Ring Color Safety yellow
Certifications CE — 2006/42/CE, 2014/30/UE, 2014/35/CE-BT




Film Specifications

Specification Value
Film Width 4" (100 mm)
Film Thickness 17, 20, 23, or 30 microns
Reel External Diameter 7.75" (195 mm)
Reel Core (Internal) 1.5" (38 mm)
Film Color Transparent or Opaque

Paper reels are compatible on units without a cutting system.


Standard Equipment

  • Steel frame — grey with blue accent, ring in safety yellow

  • Dual reel dispenser head — wrap with 1 or 2 reels simultaneously; accommodates different film widths

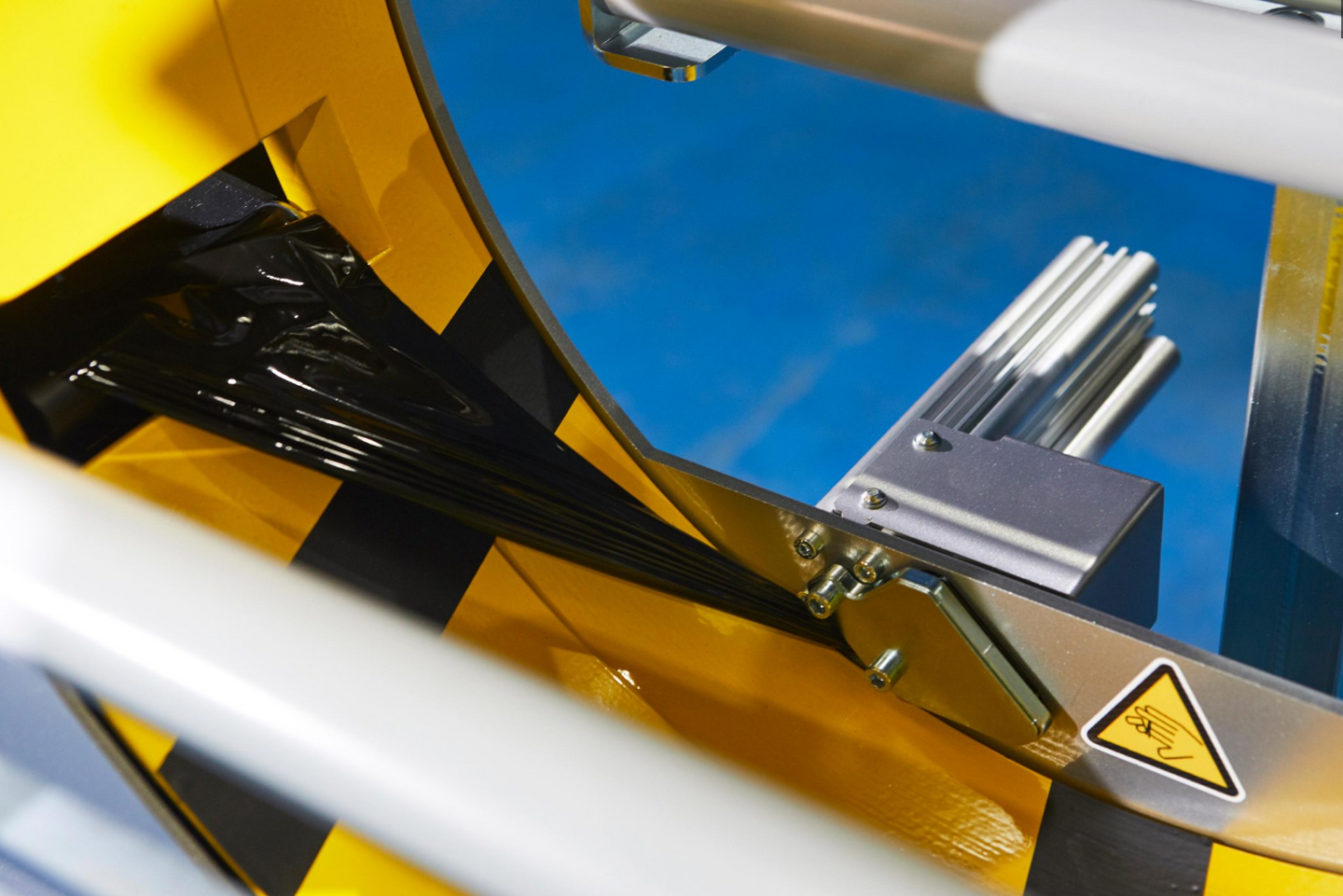

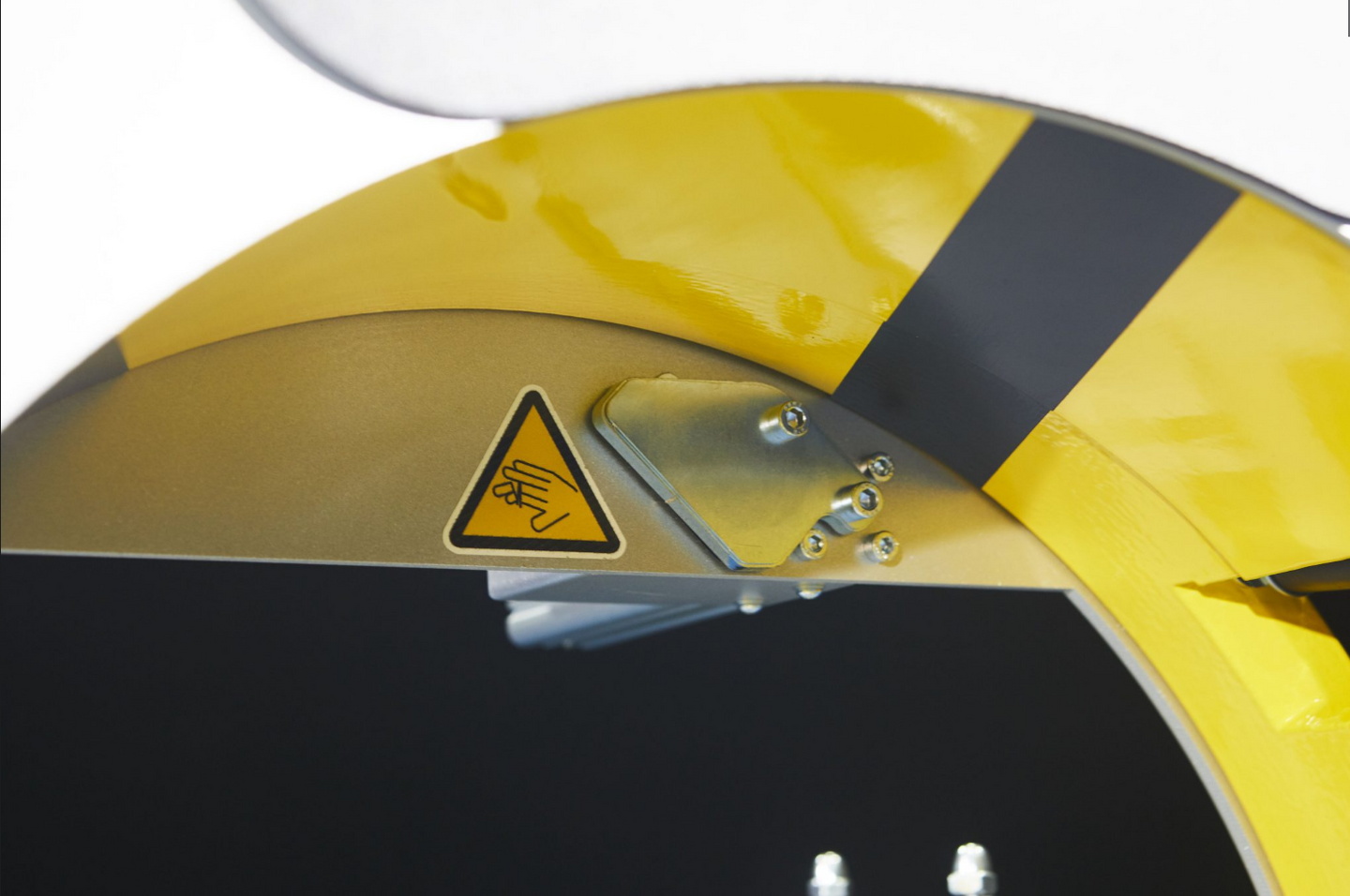

  • Double automatic clamp and cutter system — on both reels; semi-automatic threading for fast reel changes

  • Reel dispenser auto-positions for reel changing — no manual alignment

  • Tool-free reel changes with self-fixing system

  • Adjustable stretch film tension — set to product requirements

  • Safety interlock — disables machine during reel changes

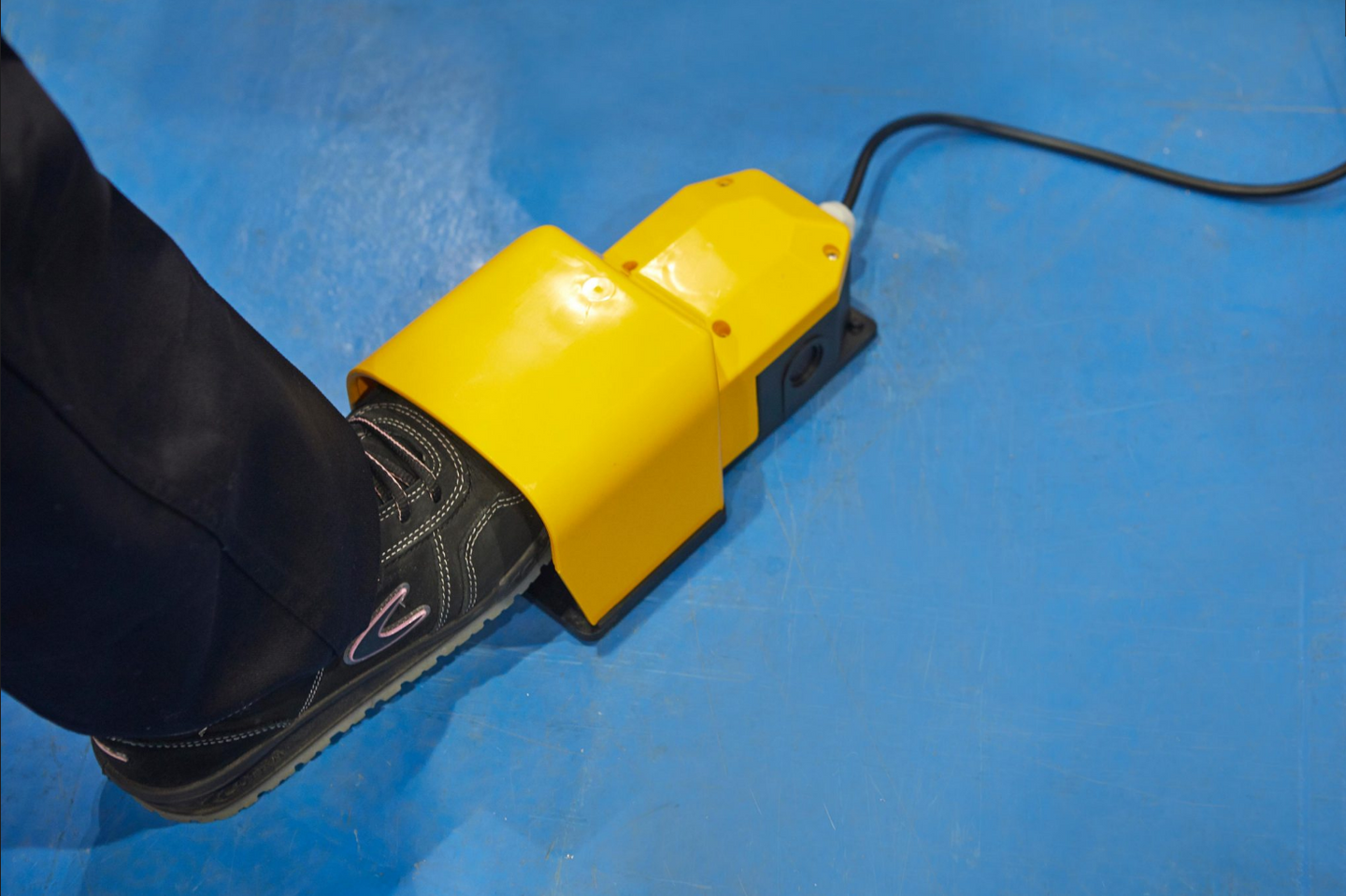

  • Safety foot switch — starts and stops wrap cycle

  • Gravity roller table 15" W x 9" L (400 x 230 mm) with vertical rollers

  • Ring drive via trapezoidal belt — low maintenance and wear

  • Control panel — master switch, power light, warning light, reset button, emergency stop


Options & Accessories

Option Description
Extra End Wraps Adjustable additional wraps on both product ends for higher protection
Gravity Roller Conveyors Extended in-feed and out-feed gravity conveyors
Vertical "V" Rollers Side rollers for round products (tubes, pipes, coils)
Short Products Bridge Enables wrapping of items 6"–10" (150–250 mm) long
Top Presser Manual-fit top presser for unstable or light loads
Caster Wheels with Brake Makes the unit portable and repositionable
Manual Bubble Wrap Dispenser Floor-mount dispenser for bubble wrap reels over 23" (600 mm) wide

Applications

The OWM-SA-50 is purpose-built for long, linear products that cannot be wrapped on a turntable:

  • Moldings and trim

  • Flooring and planks

  • Aluminum profiles and extrusions

  • Metal bars and rods

  • Tubes and pipes

  • Window blinds and shades

  • Bundled profiles or grouped products


Working Process

  1. Operator feeds product through the ring on the in-feed gravity roller conveyor

  2. Foot pedal press engages the film reels — machine wraps automatically

  3. Operator removes wrapped product from the out-feed gravity roller conveyor

    💡 Want to automate further? The fully automatic FA-50 version eliminates operator feeding and removes the need for manual product handling. Contact us to compare semi vs. fully automatic for your throughput.


📞 Contact us for pricing and configuration. The OWM-SA-50 is available with multiple options and conveyor configurations — we'll spec the right setup for your product dimensions and production rate.
