Product Description

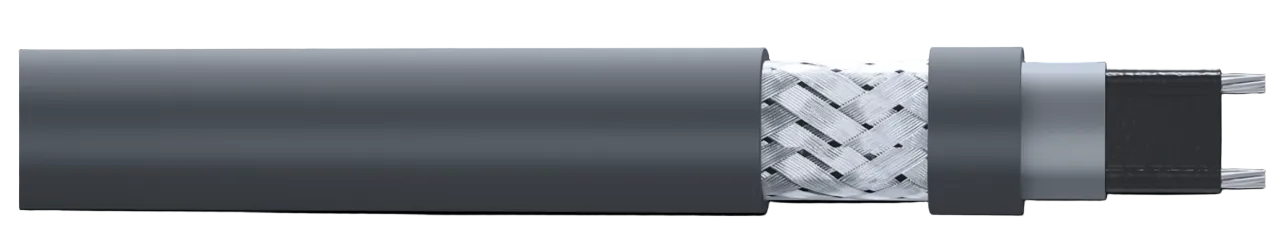

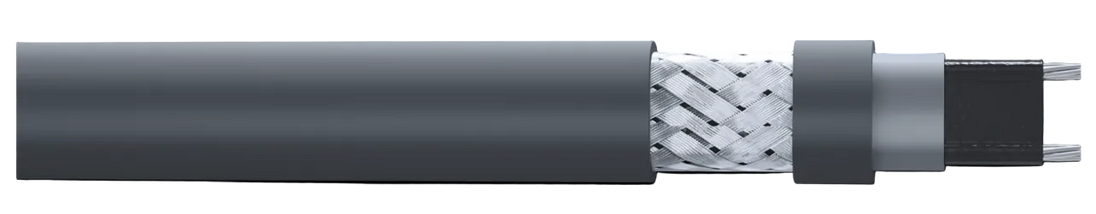

The INDEECO LSRX is a self-regulating electric heat trace cable engineered for freeze protection and process temperature maintenance on metal and non-metal pipes, vessels, and equipment. Its PTC (Positive Temperature Coefficient) semi-conductive core automatically adjusts heat output in response to the surrounding temperature along the entire length of the circuit — delivering more heat where it's cold and reducing output as the pipe warms up. This means the LSRX will never overheat, even where cables overlap, and it uses only the energy the system actually needs.

Field-cuttable to length and completed with INDEECO system connection kits, the LSRX installs quickly and is approved as a complete system for both ordinary and hazardous (classified) locations indoors and outdoors.


Technical Specifications

Specification Value

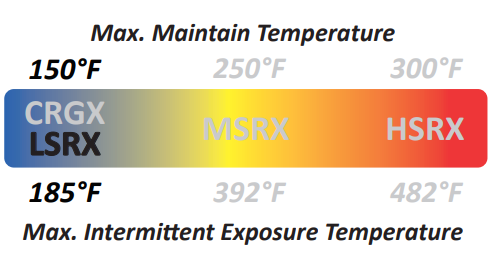

Max. Maintain / Continuous Temp. 150°F (65°C)
Max. Intermittent Exposure Temp. 185°F (85°C)
Min. Installation Temperature -58°F (-50°C)
Min. Start-up Temperature -40°F (-40°C)
Supply Voltage 120V or 208–277V
Output Wattage 3, 5, 8, 10, 12 W/ft @ 50°F*

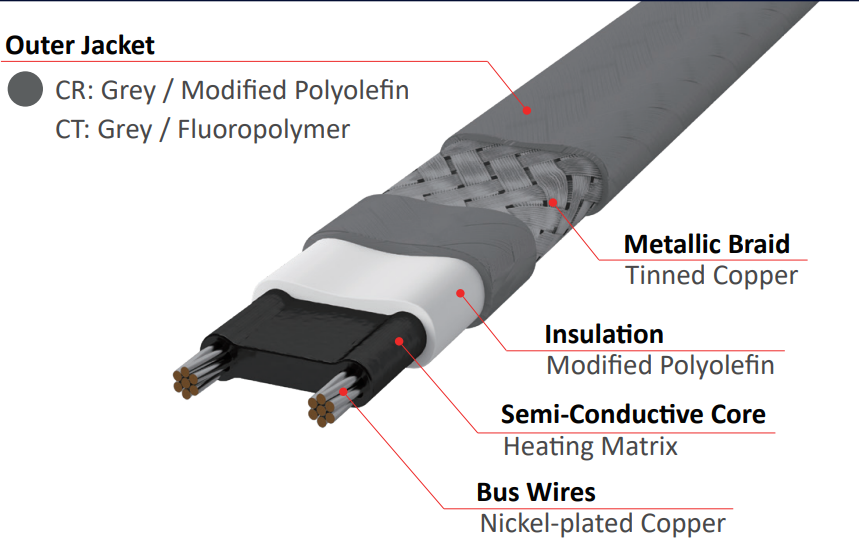

Bus Wire 16 AWG Nickel-plated Copper
Max. Circuit Breaker Size 40A
Jacket Color Grey
Braid Tinned Copper

*12 W/ft available in 208–277V only


Jacket Options

Code Jacket Material Dimensions
CR Modified Polyolefin (Grey) 0.49" x 0.25"
CT Fluoropolymer (Grey) 0.46" x 0.21"

The CT (Fluoropolymer) jacket offers superior chemical resistance and is recommended for harsh or chemically aggressive environments.


Certifications & Approvals

FM Approved — FM25US0350X, FM25CA0121X

  • ✅ Class I, Division 2, Groups A, B, C, and D — T6

  • ✅ Class II/III, Division 2, Groups F and G — T6

  • ✅ Class I, Zone 1, AEx/Ex 60079-30-1 IIC T6 Gb

  • ✅ Zone 21, AEx/Ex 60079-30-1 IIIC T6°C Db

  • ✅ Type 4X, IP66

✅ UL Listed (E515829 — Industrial/Commercial; E552707 — Residential; E515828 — De-icing)

⚠️ UL certification excludes 12 W/ft and fluoropolymer (CT) jacket cables. FM approval valid only when installed with certified INDEECO connection kits as a system.



Required Accessories

Coming soon to website Contact Us to quote your entire system

LSR / LSRX / CRG Install

Every installation requires these 4 components:

# What It Does Model
1 Power Connection Kit — connects cable to branch circuit PCA-40J
2 Core Sealer — seals every field-cut cable end 1034096 (LT) or 1034390 (HT)
3 End Seal — waterproofs the non-powered cable end ESA-ES
4 Caution Labels — NEC required on all heat trace installs HTCL-1

Also strongly recommended:

    • Pipe Straps (HTPS-6 or HTPS-10) — secures cable to pipe

    • Application Tape (HTFT-1) — holds cable in place during install

    • Aluminum Foil Tape (HTAT-1) — required if installing on plastic pipe



💡 Need continuous lengths? Available for a 10% surcharge — contact us.

Applications: Pipe freeze protection · Roof & gutter de-icing · Floor heating · Industrial process lines · Non-hazardous locations

Lead Time: Standard stock — contact us for current availability.
